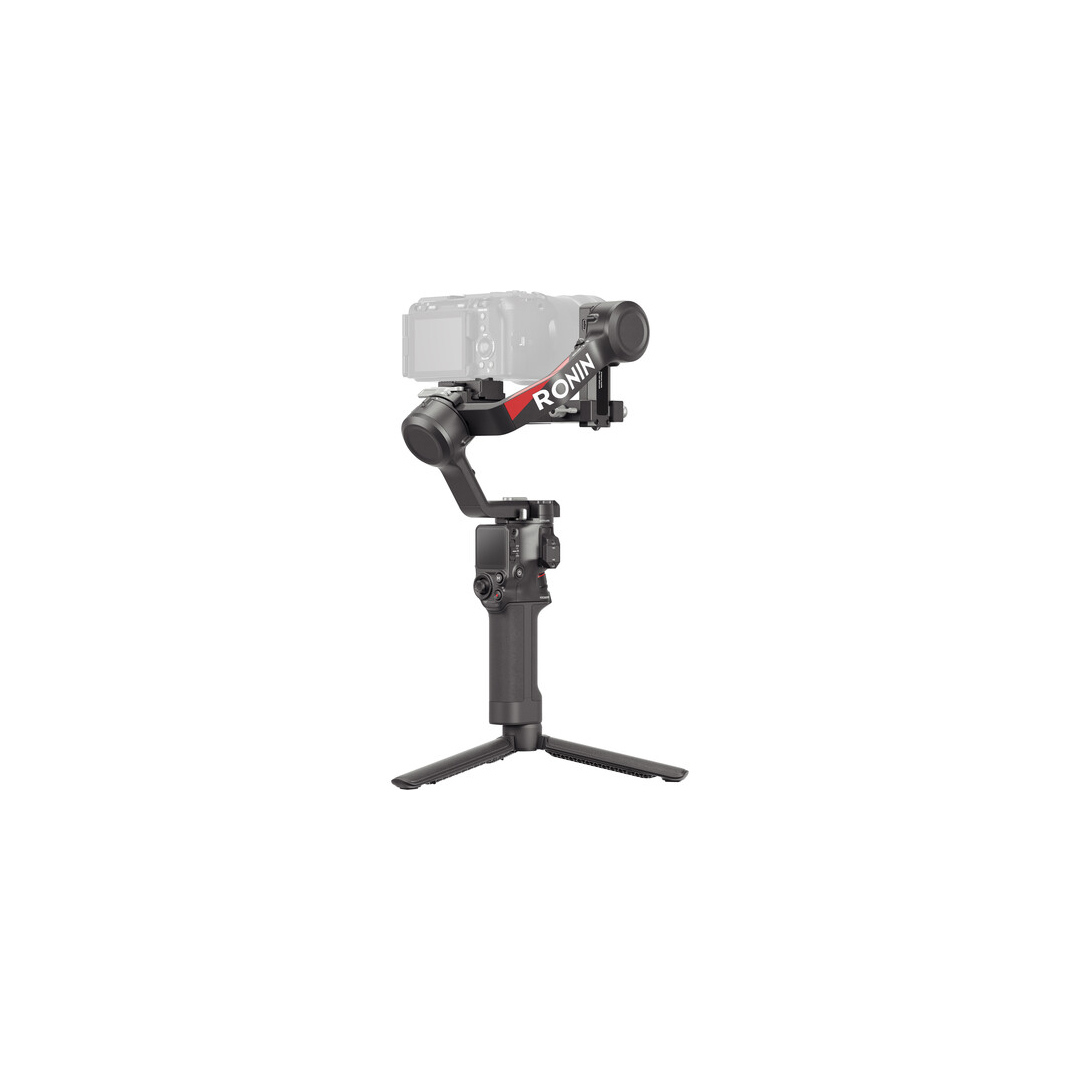

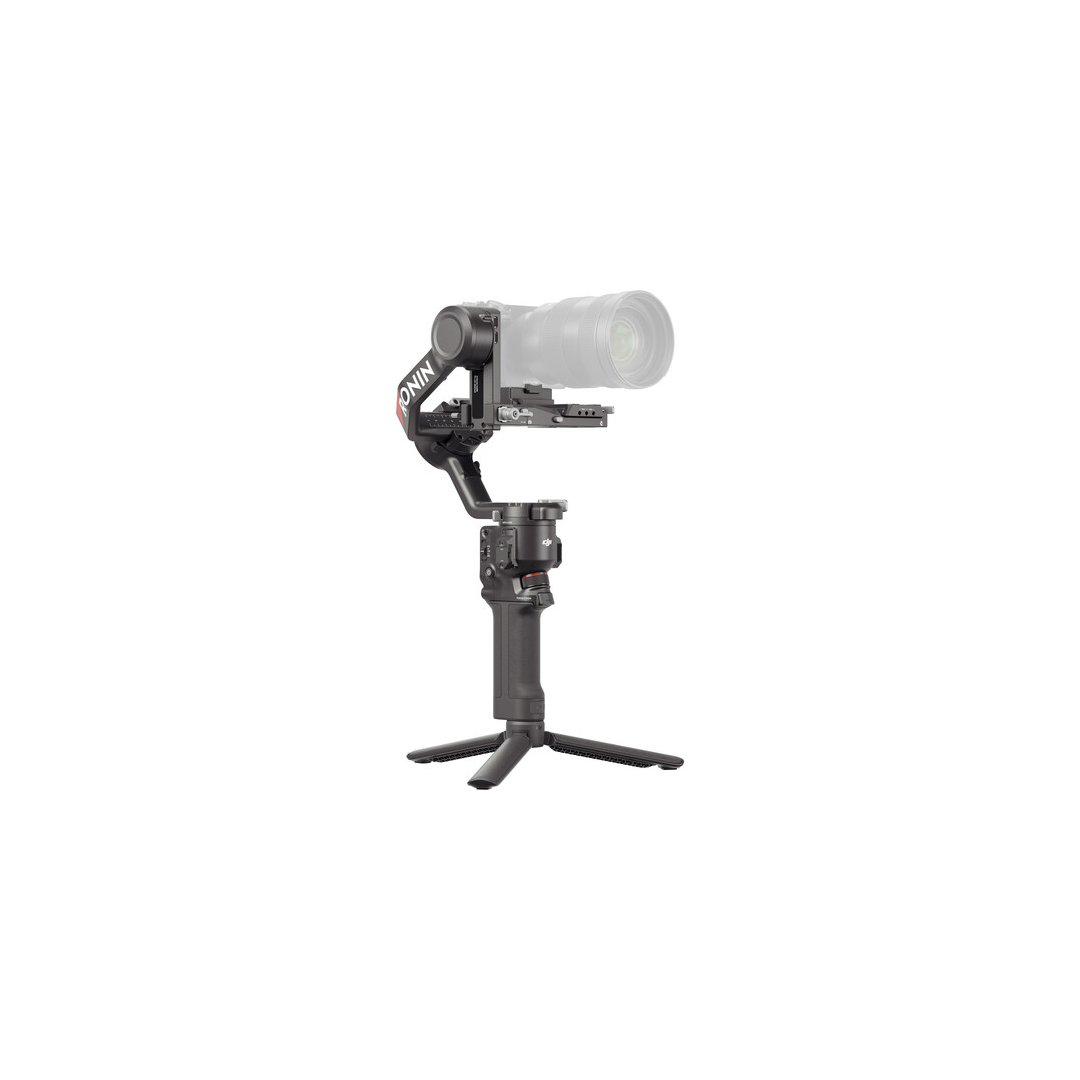

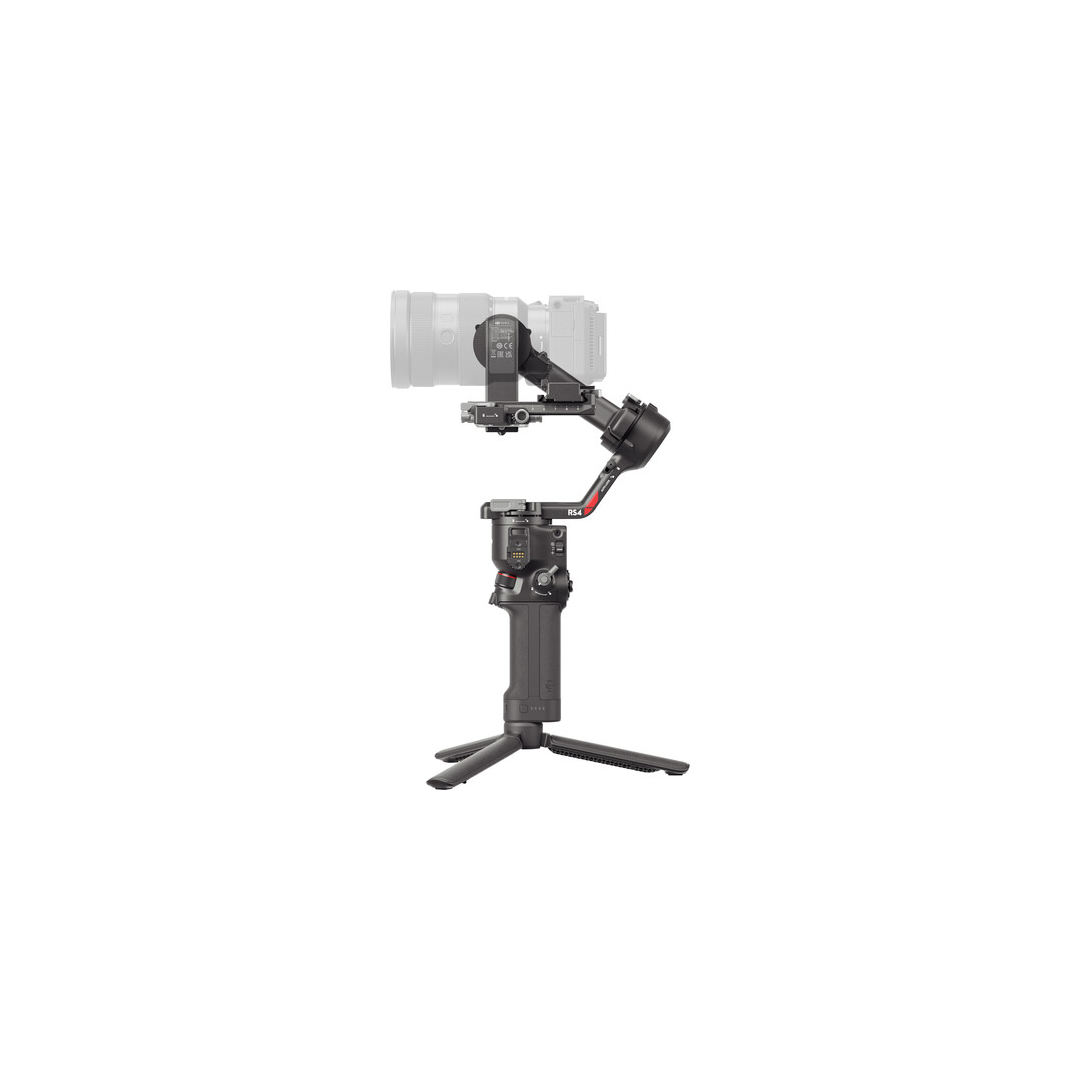

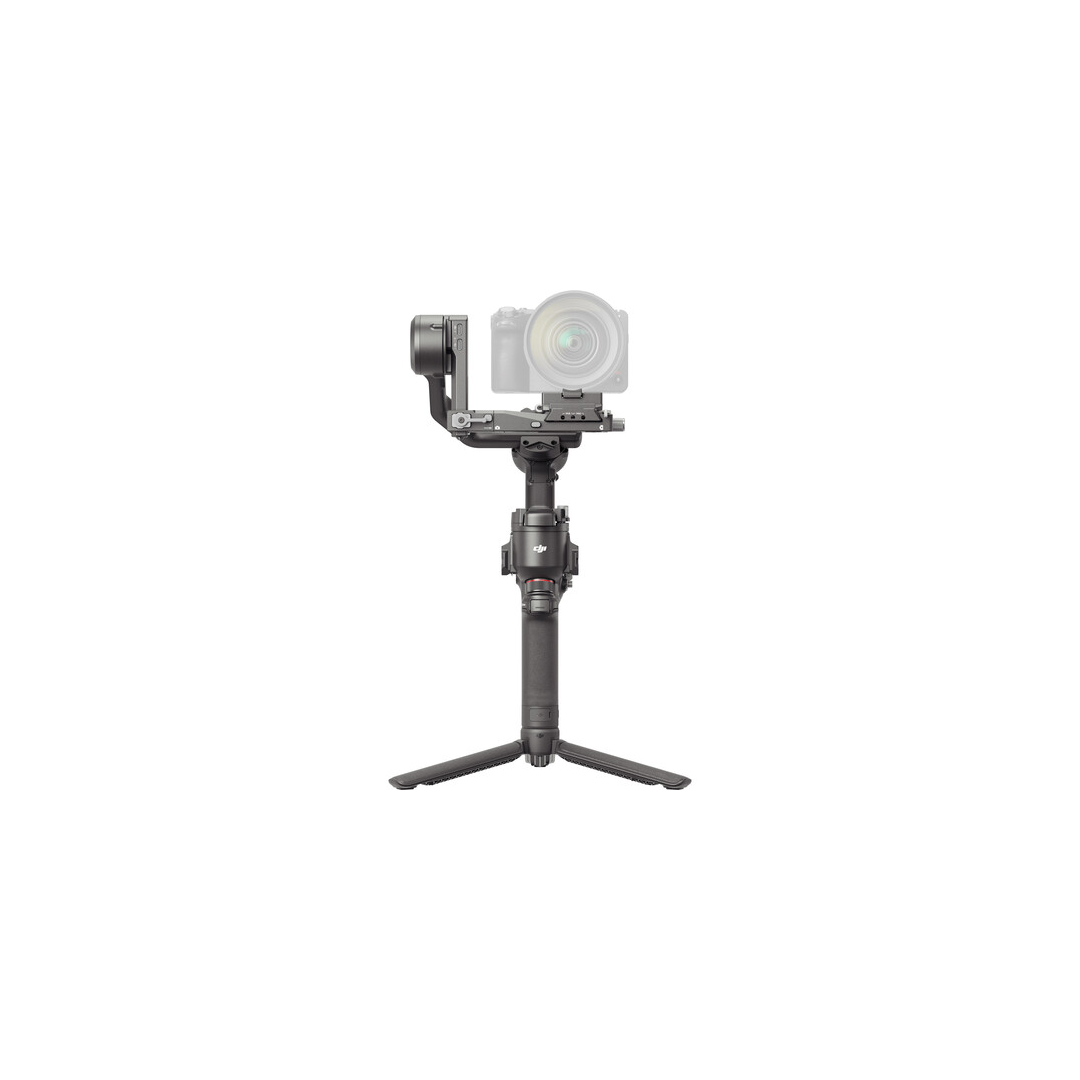

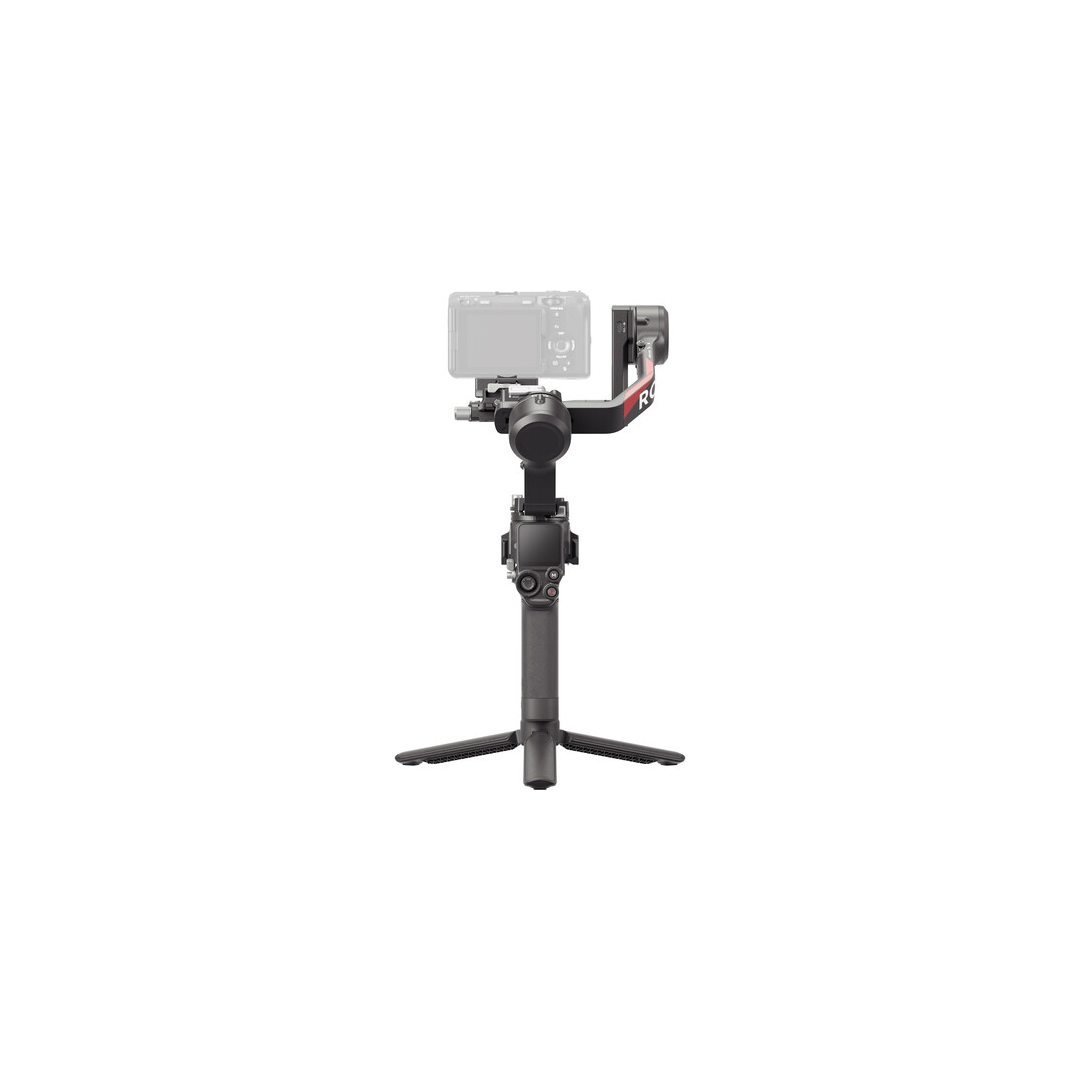

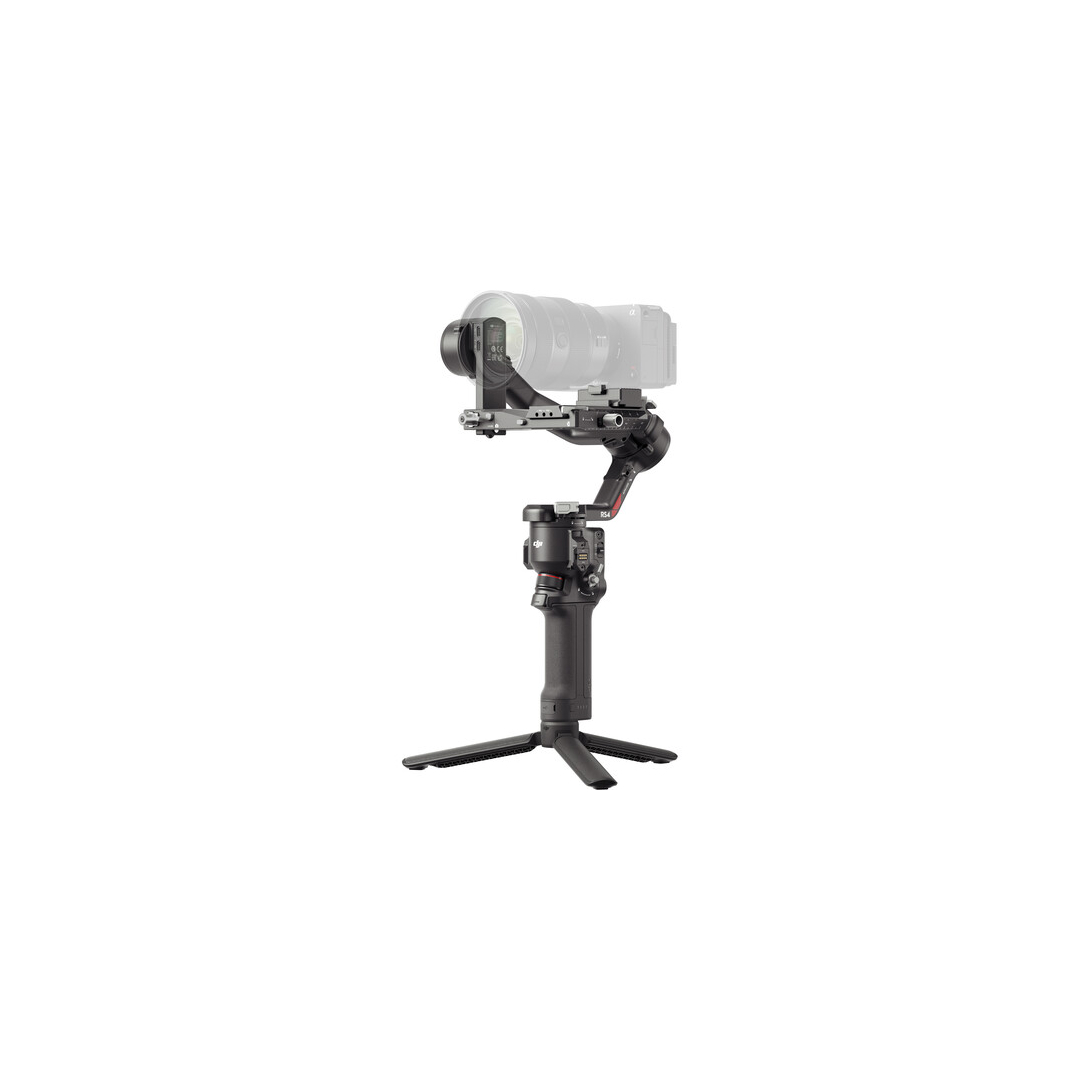

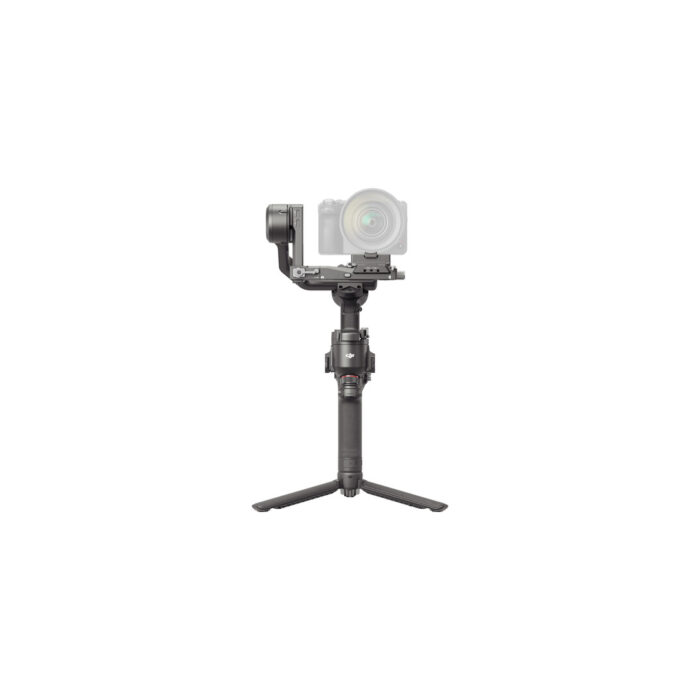

DJI RS 4 GIMBLE STABILIZER

The DJI RS 4 is a professional‑grade handheld 3‑axis gimbal stabilizer engineered for filmmakers, videographers, and creators who demand smooth, cinematic footage from mirrorless or DSLR camera setups. Featuring refined mechanical design and advanced stabilization technology, it delivers responsive, shake‑free performance—even with larger camera + lens combinations. The RS 4 builds on DJI’s renowned Ronin series with intelligent features like second‑generation native vertical shooting, automated axis locks, and a full‑color OLED touchscreen for quick access to modes and settings.

Whether you’re shooting narrative scenes, run‑and‑gun content, or dynamic motion footage, the RS 4’s professional feature set and accessory ecosystem make it a versatile tool for content creation workflows.

Key Specifications

General

• Product Type: Handheld 3‑axis camera gimbal
• Design: Single‑grip slanted handle stabilizer
• Compatibility: Mirrorless and DSLR cameras (varies by payload and mounting)
• App Support: DJI Ronin app (iOS & Android)

Gimbal & Stabilization

• Axes: 3‑axis (Pan, Tilt, Roll)
• Stabilization: 4th‑Gen RS stabilization algorithm
• Payload Capacity: Up to 3 kg / 6.6 lb camera + lens setup
• Mechanical Range:
  • Pan: 360° continuous rotation
  • Roll: -95° to +240°
  • Tilt: -112° to +214°
• Max Controllable Speed: 360°/s on each axis

Controls & Display

• 1.8″ Full‑Color OLED Touchscreen for mode selection, status, and adjustments
• Mode Switch (Pan Follow, Pan & Tilt, FPV, Portrait, Custom) with joystick control
• Dedicated trigger and customizable buttons for quick actions

Balance & Axis Locks

• 2nd‑Gen Automated Axis Locks for fast setup and transport
• Teflon™‑coated axis arms to reduce friction and improve balance efficiency
• Fine‑tuning tilt axis knob for precise balancing

Battery & Runtime

• Battery Type: Built‑in LiPo (approx. 3000 mAh)
• Run Time: Up to 12 hours depending on load and settings
• Charge Time: Approx. 2.5 hours

Connectivity

• Wireless: Bluetooth 5.1 + 2.4 GHz RF
• USB‑C Ports: Multiple (for camera control, focus/zoom motor, video transmission, power)

Expansion & Accessories

• RSA Communication Ports (for accessories like DJI Focus Pro Motor)
• NATO rails + 1/4″‑20 mounting points for accessory expansion
• Optional High‑Capacity Battery Grip (BG70) extends battery life and adds power output for camera & accessories (USB‑C PD)

Intelligent Features

• Native Vertical Shooting (2nd‑Gen): rapid switch between horizontal and vertical orientations without additional gear
• Motion‑Lapse, Track, Panorama: built‑in creative capture modes
• Focus & Zoom Control: with new DJI Focus Pro Motor for precise lens control

Physical & Operating

• Folded Dimensions: Approx. 245 × 255 × 75 mm
• Unfolded Dimensions: Approx. 370 × 191 × 189 mm
• Weight (main gimbal + grip + accessories): ~1066 g (2.35 lb)
• Operating Temperature: -20 °C to 45 °C (‑4 °F to 113 °F)

Use Cases

• Professional filmmaking and narrative video
• Mirrorless & DSLR handheld stabilization
• Vertical content & social media capture
• Dynamic motion and action shots
• Run‑and‑gun shooting, gimbal‑only workflows
