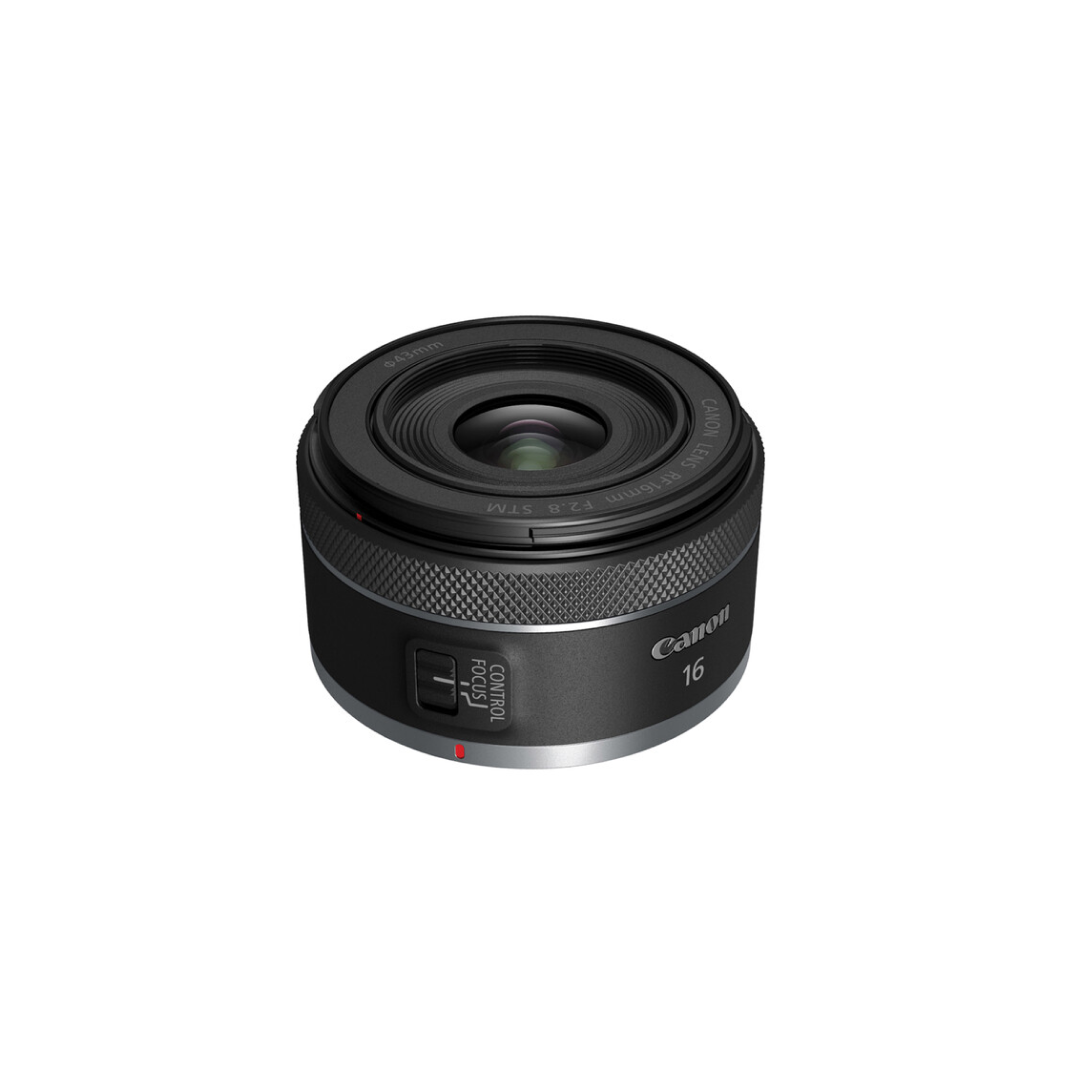

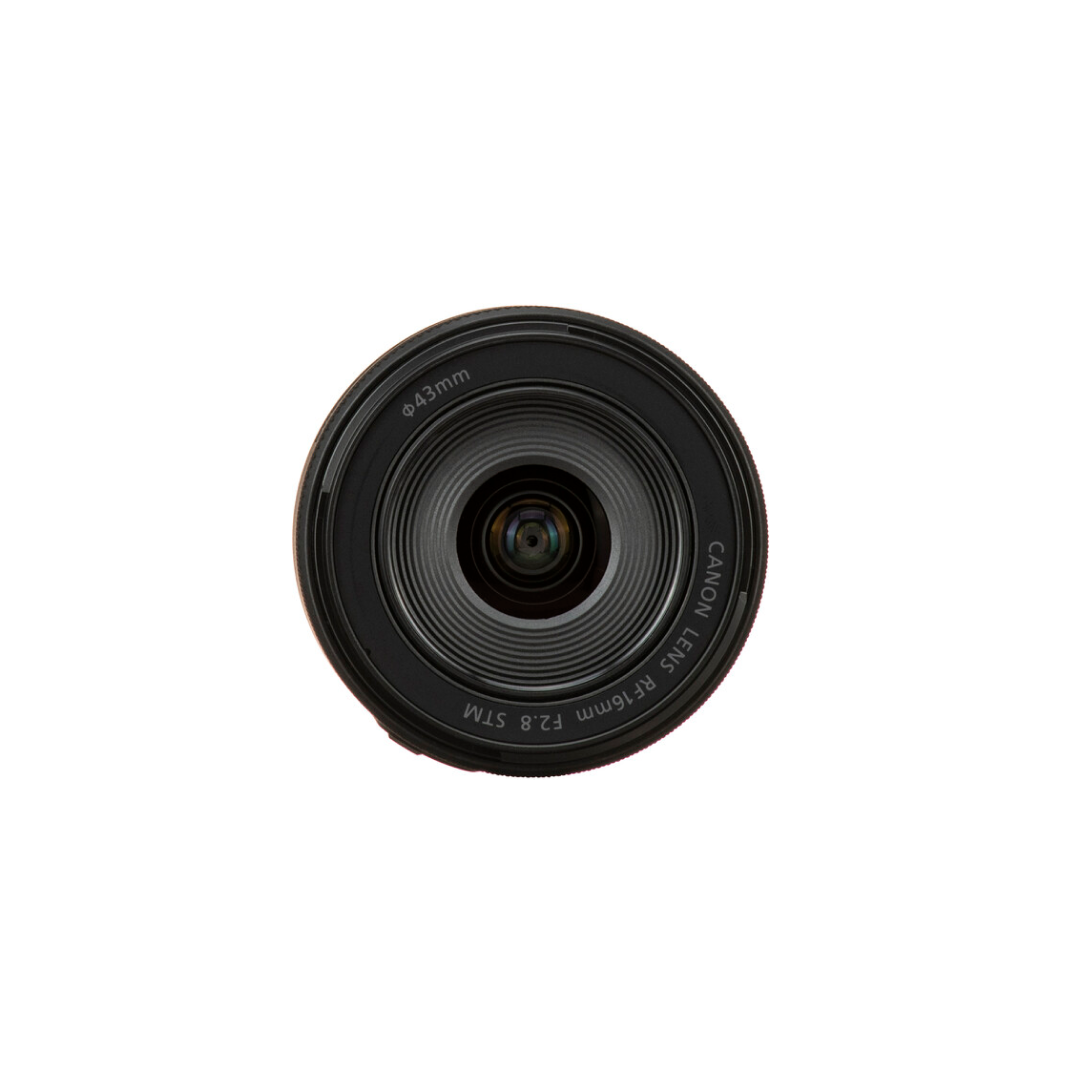

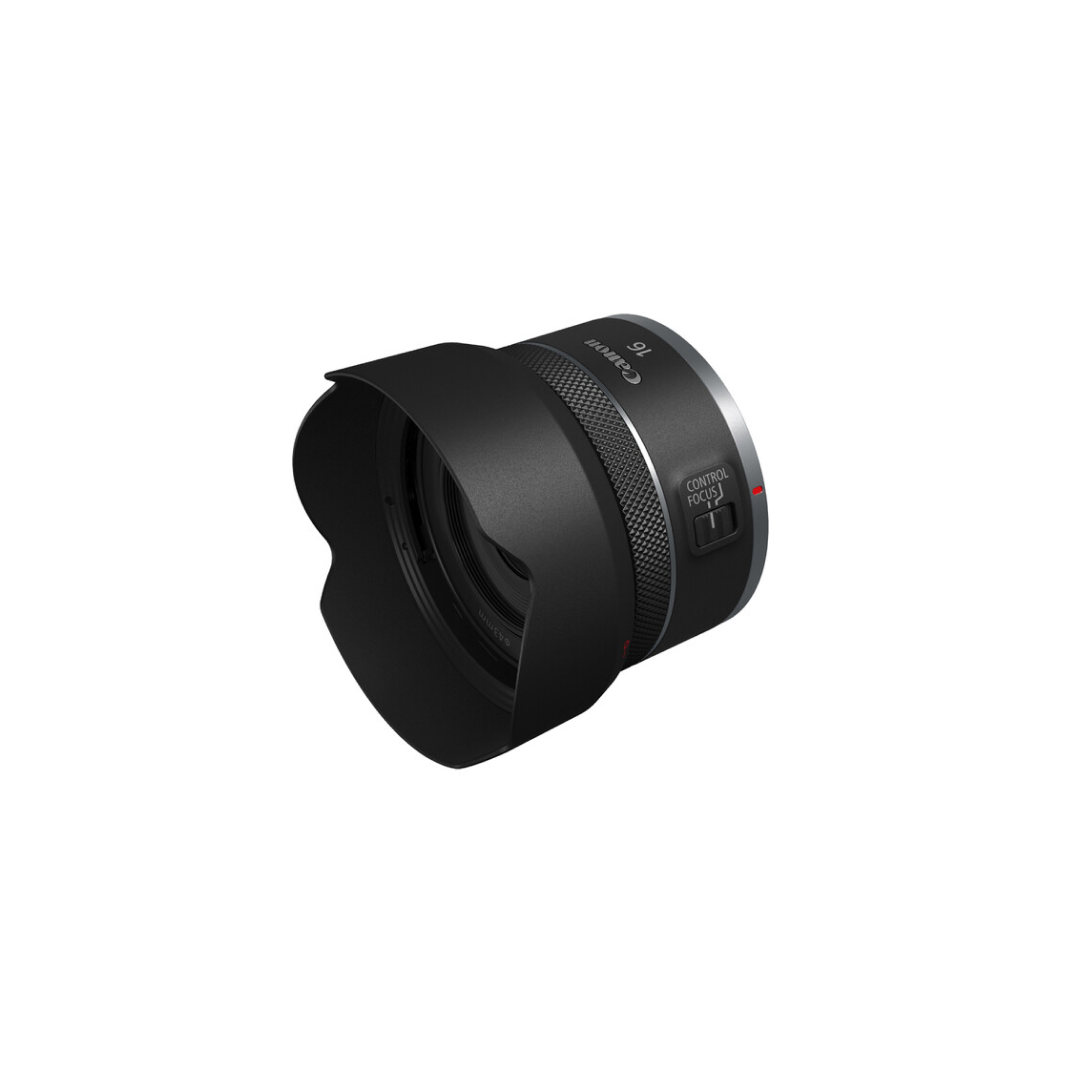

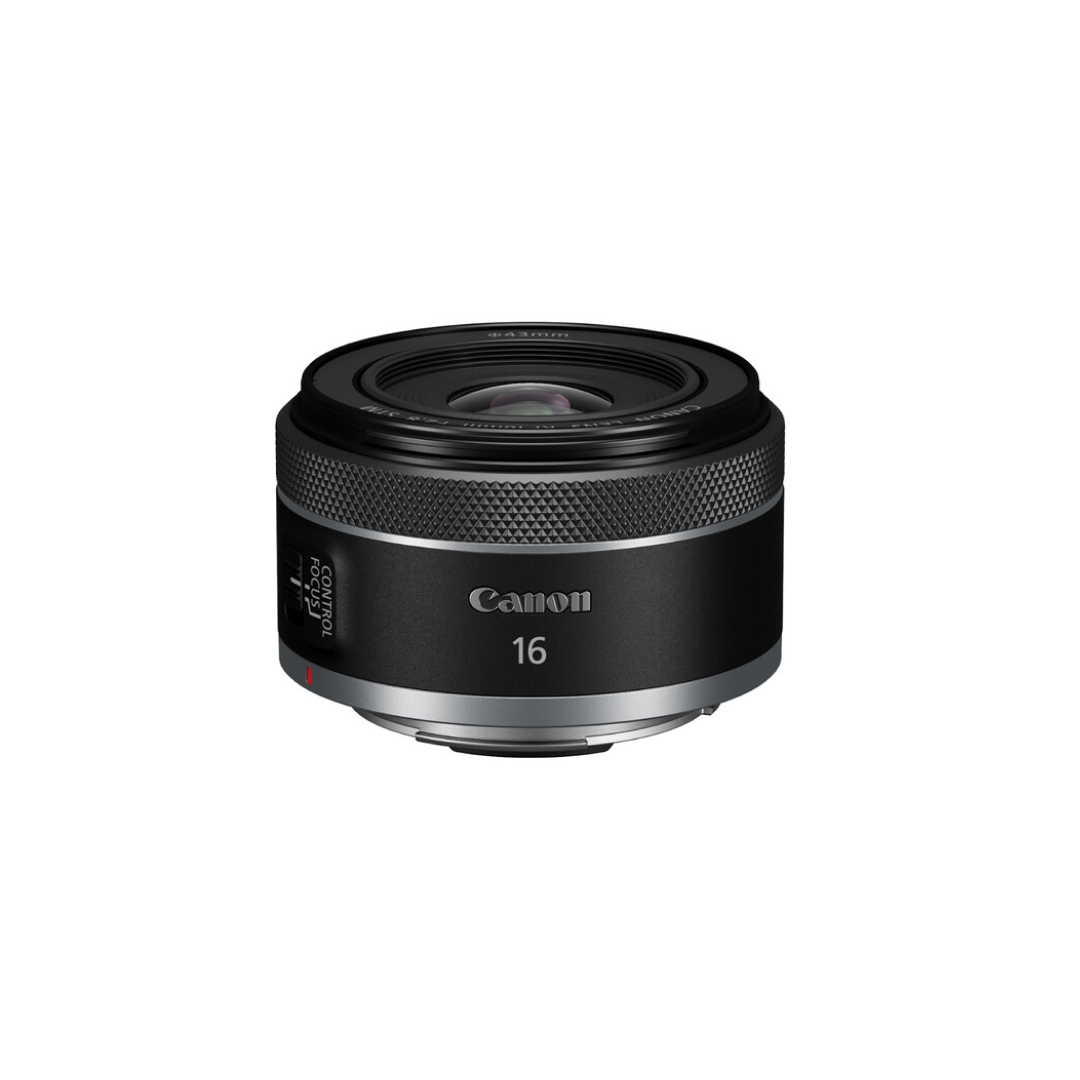

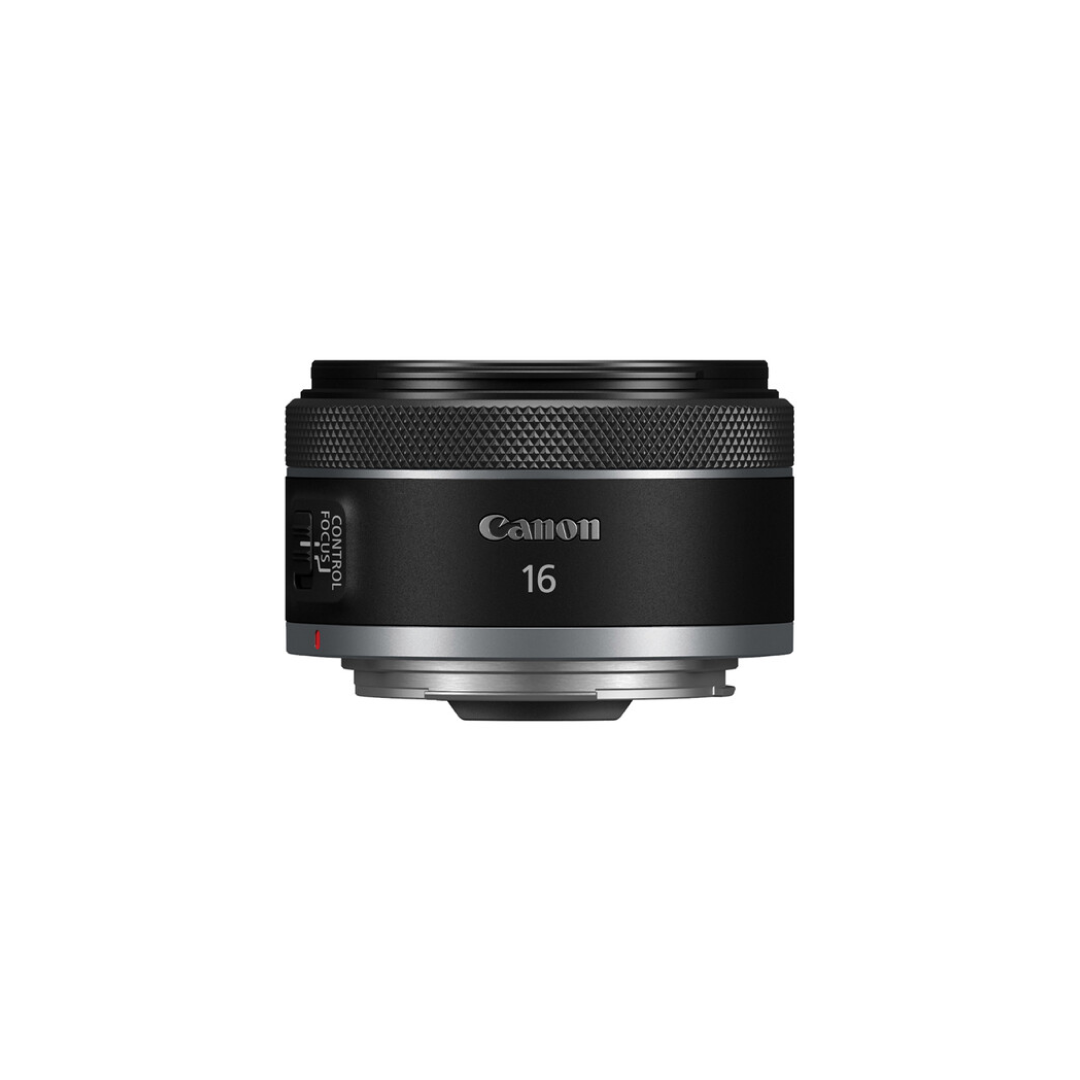

Canon RF 16mm f2.8 STM Lens

The Canon RF 16mm f/2.8 STM Lens is a lightweight and portable full‑frame prime in Canon’s RF system that delivers an expansive ultra‑wide field of view (approx. 108° diagonal) in a truly pocketable form factor. Designed to complement EOS R‑series mirrorless cameras (full‑frame and APS‑C), this optic combines a wide perspective with a fast f/2.8 maximum aperture, making it capable of shooting in varied lighting conditions and supporting shallow depth‑of‑field effects near the subject.

Optics and Performance:

• Ultra‑wide Perspective: The 16 mm focal length captures expansive scenes — excellent for landscape, architecture, interiors, and creative compositions.

• Bright f/2.8 Aperture: Supports performance in lower light and offers control over depth of field for subject separation.

• STM Autofocus: A stepping motor (STM) provides fast, quiet, and smooth autofocus, well‑suited for video recording and live view photography.

• Compact & Lightweight: Measures approximately 69.2 mm in length, 40.1 mm in diameter, and weighs around 165 g, making it easy to carry and pair with smaller RF bodies.

• Close‑Focus and Magnification: A minimum focusing distance of 0.13 m (13 cm) and a 0.26× magnification ratio enable engaging close‑up ultra‑wide shots.

• Optical Design: Comprised of 9 elements in 7 groups, including an aspherical element to improve sharpness and control aberrations.

• Super Spectra Coating: Reduces flare and ghosting for improved contrast and color fidelity in challenging lighting.

• Control/Focus Ring: A customizable ring lets you adjust settings such as aperture, ISO, or exposure compensation directly on the lens.

Handling and Use Cases:

• Travel and Street Photography: Ultra‑wide view fits expansive scenes and creative compositions.

• Vlogging and Video: STM autofocus and compact size make it suitable for on‑the‑go video capture.

• Landscape and Architectural Work: Wide field of view captures broad vista and interior shots.

• Everyday Snapshots: Light weight and simplicity make it a flexible everyday lens, particularly on APS‑C bodies where it becomes roughly equivalent to a ~25.6 mm focal length.

Considerations:

• No Built‑In Image Stabilization: The lens does not include optical IS — stabilization depends on the camera body’s IBIS if available.

• Distortion: Ultra‑wide lenses naturally show barrel distortion at the edges; in this model corrections are often applied in‑camera or in post‑processing.

• Build Quality: Lightweight construction lacks weather sealing; handle with care in harsh environments.

Key Specifications

• Focal Length: 16 mm (full‑frame) / ~25.6 mm equivalent on APS‑C

• Maximum Aperture: f/2.8

• Minimum Aperture: f/22

• Lens Mount: Canon RF

• Format Coverage: Full‑Frame & APS‑C

• Minimum Focus Distance: 0.13 m / 13 cm

• Maximum Magnification: 0.26×

• Optical Construction: 9 elements in 7 groups

• Aperture Blades: 7 (rounded)

• Angle of View: Approximately 108° diagonal

• Filter Thread: 43 mm

• Dimensions: ~Ø40.1 × 69.2 mm

• Weight: ~165 g

Who It’s For

The Canon RF 16mm f/2.8 STM is ideal for:

• Photographers seeking ultra‑wide perspectives without the size and cost of larger wide‑angle lenses.

• Travel, landscape, and architectural shooters who value portability.

• Video creators and vloggers who want a lightweight lens with smooth autofocus.

• APS‑C users (EOS R7, R10, R50) looking for an affordable prime that produces an effective ~25.6 mm equivalent focal length.
